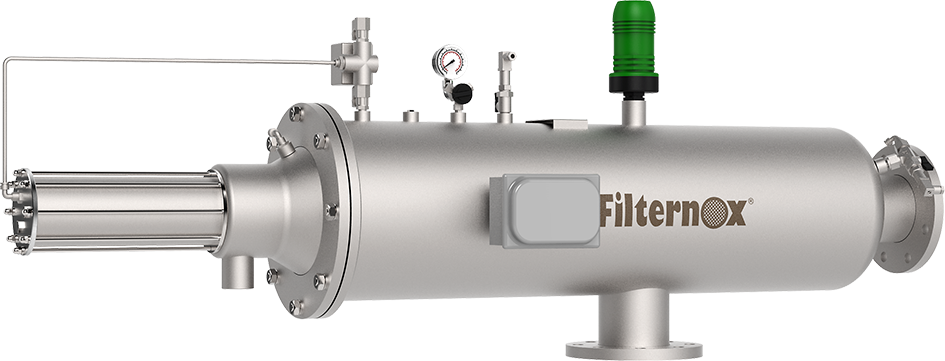

SPT model filters are suitable for low and medium flow applications in industry, cooling tower, irrigation and domestic applications.
Automatic Self Cleaning SPT models also contain only fine screen element, without protective coarse screen in the inlet of the fine screen. Their capacity goes up to 160 m3/hour in one filter.
| Body Material | Max. Operating Temperature | Back-Flush Water Consumption |
|---|---|---|
| AISI 304L, AISI 316L | 60°C / 90°C | 80 – 120 l / back-flush |
| Screen Material | Headloss at Max. Flow Rate | Fine Screen Range |
| AISI 316L | 0.2 bar | 10 – 3000 micron |
| Max. Operating Pressure | Back-Flush Time | Control System |
| 10 bar (16-25 bar optional) | 20 – 30 s | Hydraulic or Electric |
| Min. Inlet Pressure Required During Back-Flush | rpm of Cleaning Mechanism | |
| 2 bar | Adjustable |
For different pressure and material requirements, please contact us.
